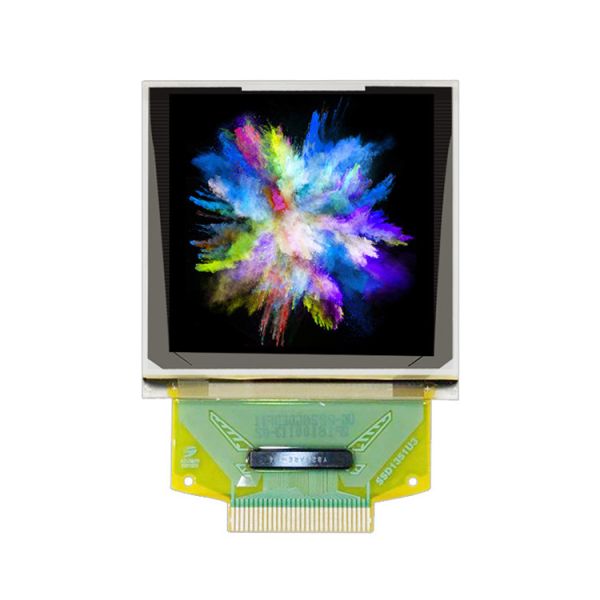

The OLED display module made of 128xRGBx128 OLED pixels,diagonal is only 1.5 inch.
The controller ic SSD1351, communicates via 6800/8080 8-bit parallel and 3-wire/4-wire
serial interface. Because the display makes its own light, no backlight is required. This
reduces the power required to run the OLED and is why the display has such high
contrast,extremely wide viewing angle and extremely operating temperature.The fpc
is the connector type,we offer optional zif connector(fpc connector).
| Name | 1.5 Inch Full Color OLED Display Screen 128x128 OLED Display |
| Display Color | Full color | Dox Matrix | 128x128 Resolution |
| Warranty | 1 year | Dark Room Contrast Ratio | 10000:1 |
| Outline Dimension | 33.80 x 48.35 x 1.60mm | Active Area(HxV mm) | 26.855 x 26.864mm |
| Response Time | 10 μs | Interface | SPI, 30pin |
| Drive Duty | 1/128 Duty | Brightness | 90cd/m2 |
| IC Driver | SSD1351 | Supply Current/Voltage | 240mA,2.8V |
| Operation Temperature | -40℃~70℃ | Storage Temperature | -40℃~85℃ |
| View angle | Free | Resolution Pitch | 0.07x0.21 mm |
Packaging and Delivery:
1. Payment Terms: T/T, Paypal
2. Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3. Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
4. Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
5. Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
FAQ:
1.Why Choose P&S?
1.Small MOQ accepted.
2.Competitive price and short lead-time.
3.ISO9001 and ROSH certificated factory supplied.
4.Professional?technicians and QC team test the original products one by one to ensure every products are perfect before package and shipment!
5.Dedicated and professional sales team provide immediate service
2.What can we do for you?
Customize service is available.
3.What is sthe lead time of products?
7-10 days for goods in stock, 3-4 weeks for mass production goods ?
4.Payment methods?
T/T , Paypal and western union .
Product Tags:
|
|
SSD1351 1.5 Inch Small Oled Screen , 30pin 128x128 OLED Display Images
|
